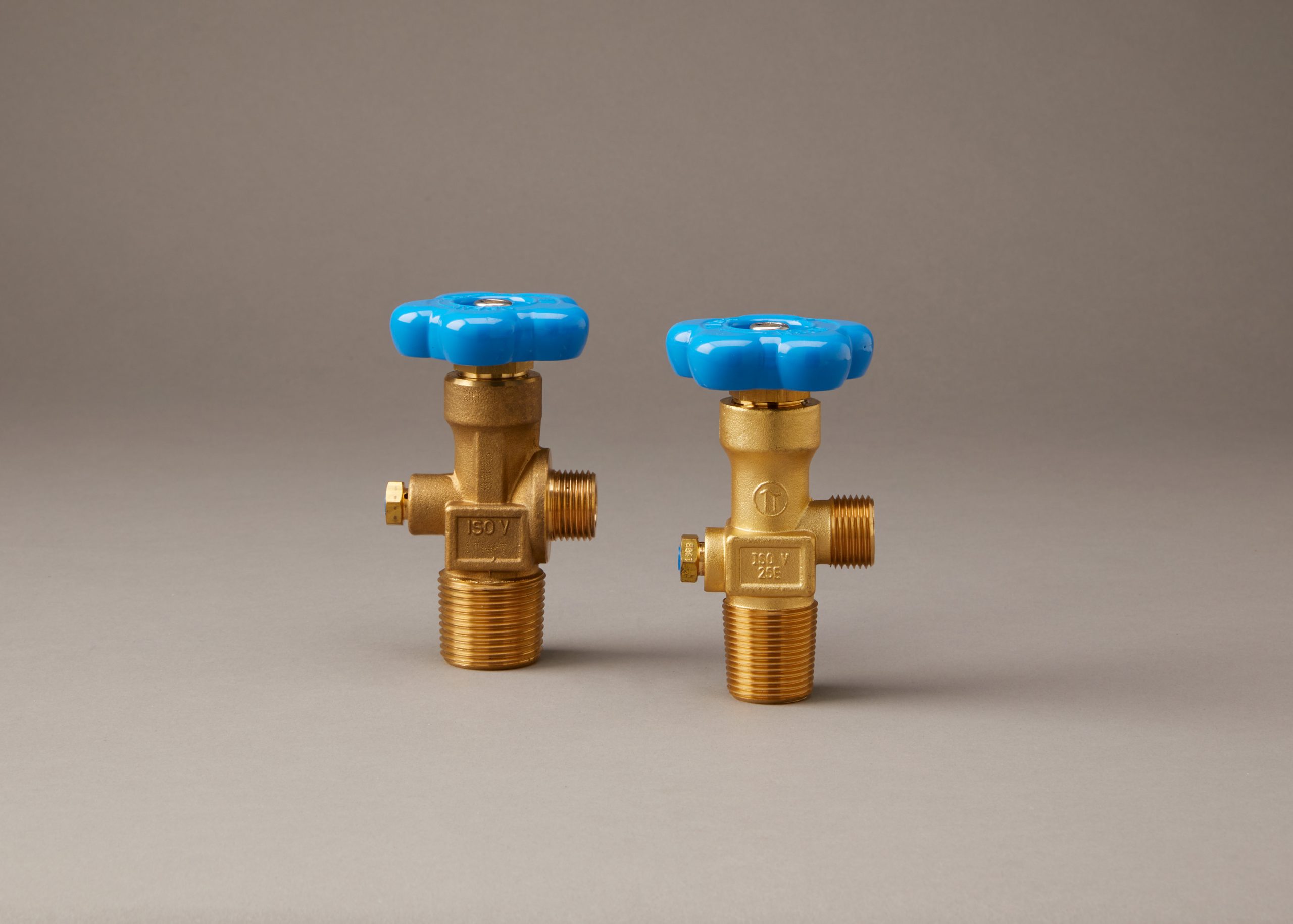

0194 – 0176
- Permanent gas tight seal.
- Robust design that guarantees a long useful life under any service requirement.
- Smooth operation.
- Seat made of plastic material that requires a low operation torque.
- Safety device with functional design for easy replacement.
- TPED marking (π) acc/ ISO10297 standard.
- Working pressure pmax: 200 bar
- Temperature range: -20ºC / +70ºC
- Seat orifice diameter: 5mm
- Helium tightness | at pmax
- internal: 0,001 mbarl/seg
- external: 0,001 mbarl/seg
- Material
- valve body: Brass
- seat: DELRIN
- o-rings: EPDM
- handwheel: Aluminum (blue RAL5015)
- Handwheel cap with customer’s logo
- Handwheel colour
- Protection cap on outlet connection
- Control device (Non-return, Flow limiter,…)
- Dip tube in cylinder connection (define Material, Length and Fixing system)
- Surface finish (Zinc-plated, Chrome-plated, Nickel-plated, Painted, Teflonized,…)
- Tests according to customer specification
- Labeled with QR code
- Packaging (protections, unit box,…)
- Gas type
- Body material
- Cylinder connection
- Outlet connection
- Dip tube connection
- Maximum working pressure
- Safety device pressure
- Required Options
